This 5.12kWh Wall Mounted LiFePO4 Storage Battery features a space-saving wall-mounted design for easy installation. It is ideal for home emergency backup, solar energy systems and RV interior power supply, delivering stable and long-lasting power.
Articolo n. :
5.12kWh Wall Mounted LiFePO4 Storage BatteryOrdine (MOQ) :
1PCSPagamento :
T/T,L/C,Credit Card,PayPalOrigine del prodotto :
ChinaColore :
BlueServizio :
OEM /ODMPorto di spedizione :
Shanghai/Guangzhou/Shenzhen/NingboTempi di consegna :
3-7 DaysPeso :

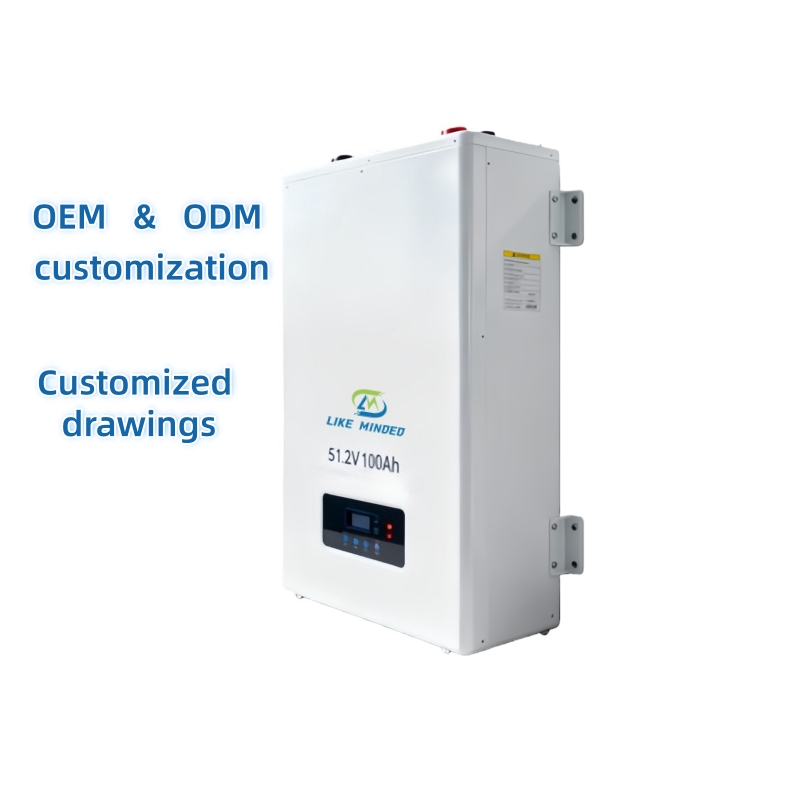

76.8KgLikeminded 51.2V 100Ah Wall Mounted Battery

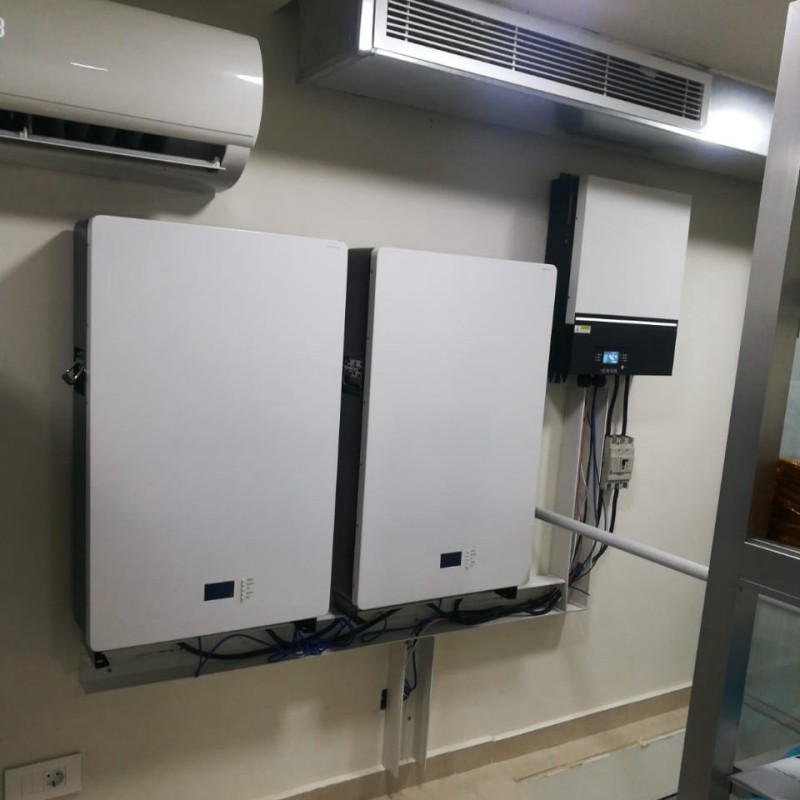

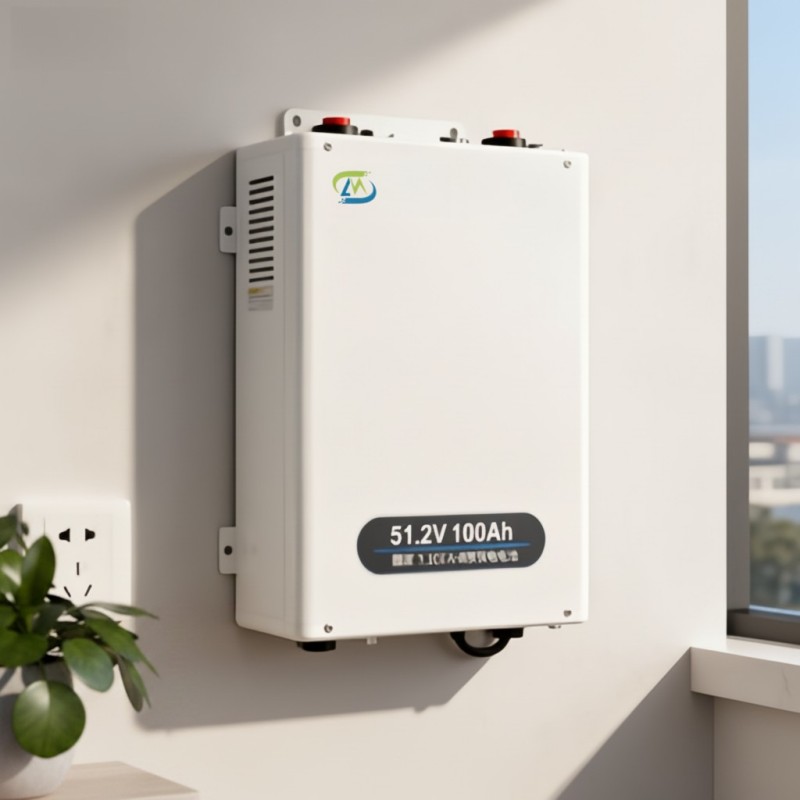

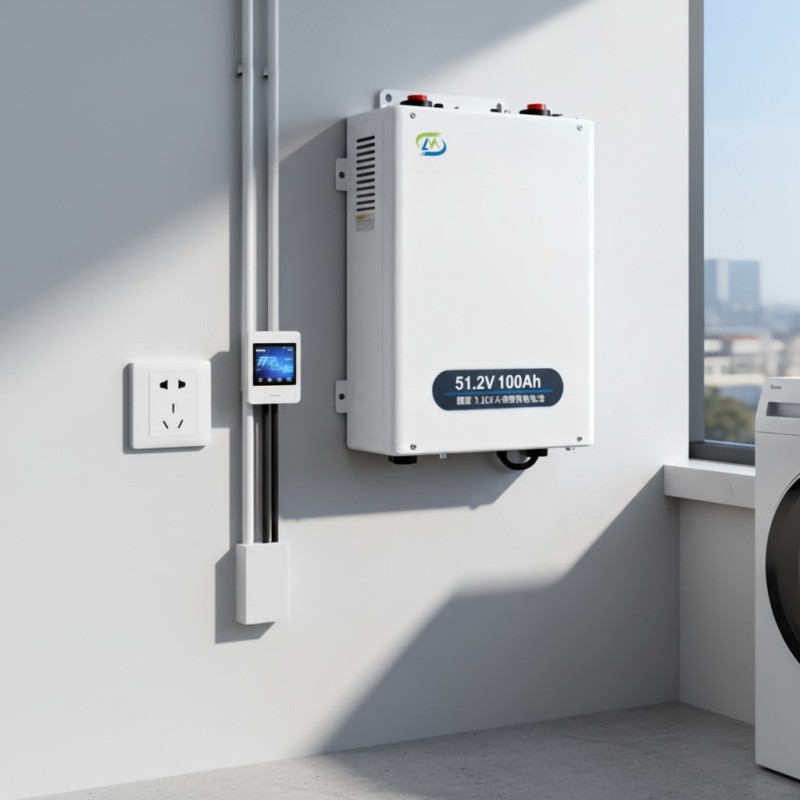

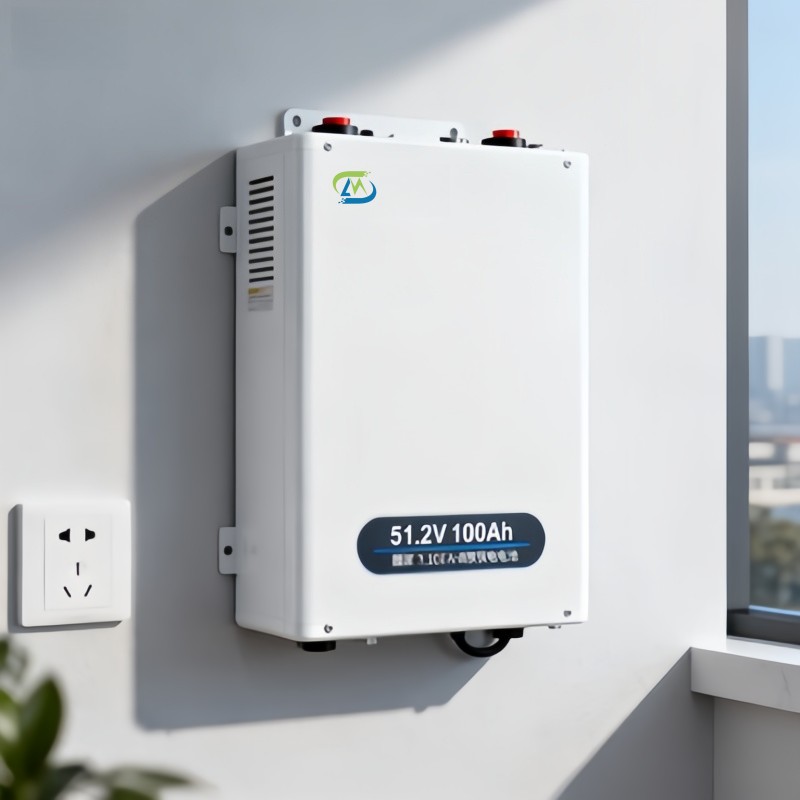

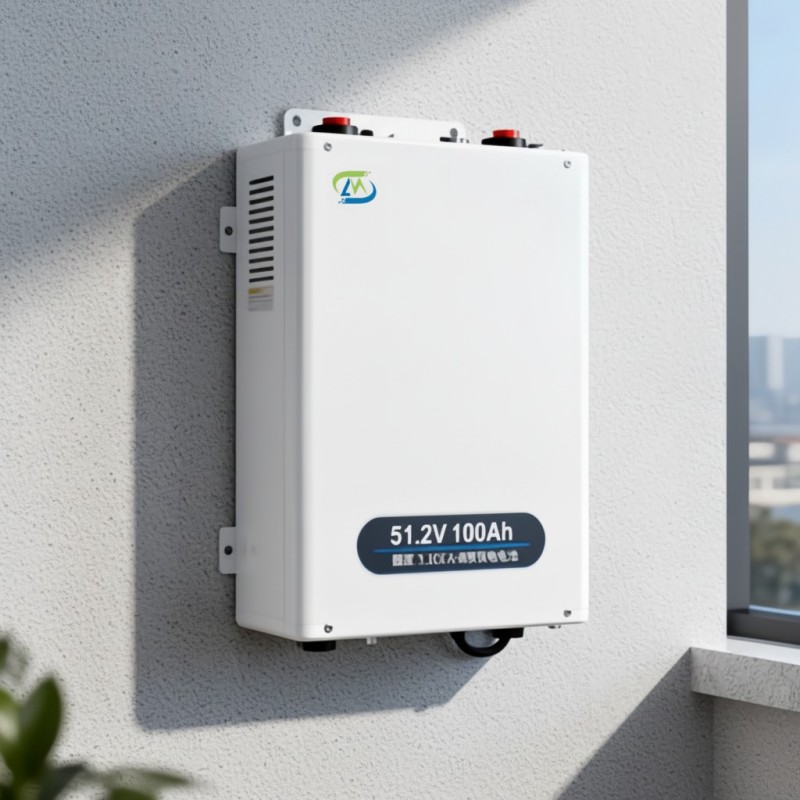

This wall-mounted LiFePO4 battery adopts a slim wall-hung structure, which saves plenty of space and keeps the installation area neat. Equipped with high-quality LFP cells, it has 51.2V nominal voltage, 100Ah capacity and 5.12kWh usable energy, providing steady power output for long-term use.
Built-in intelligent BMS offers full protection against overcharge, over-discharge, over-current and high temperature. It supports CAN/RS485/RS232 communication and real-time SOC & LED status display. As a 51.2V Wall Battery For Home Backup Power, it uses standard CC/CV charging mode and is compatible with most mainstream chargers and inverters.
This Solar Energy Storage Wall Mount Battery Pack works perfectly with household solar systems to store solar power efficiently. It boasts over 5000 cycle life at 80% DOD, and runs stably in temperatures from -20℃ to 75℃. You can connect up to 15 units in parallel to expand storage capacity freely.

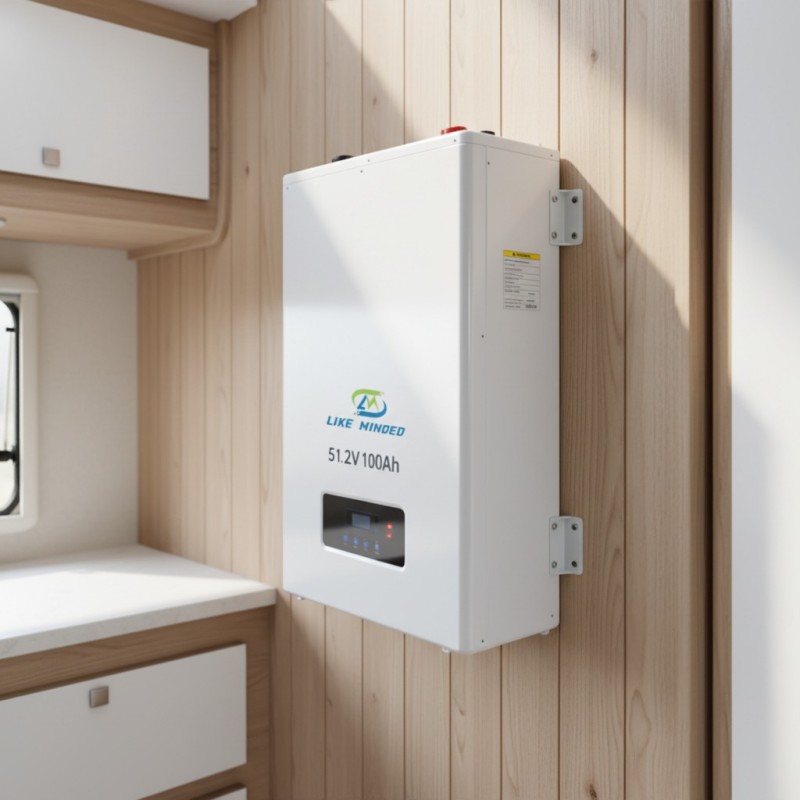

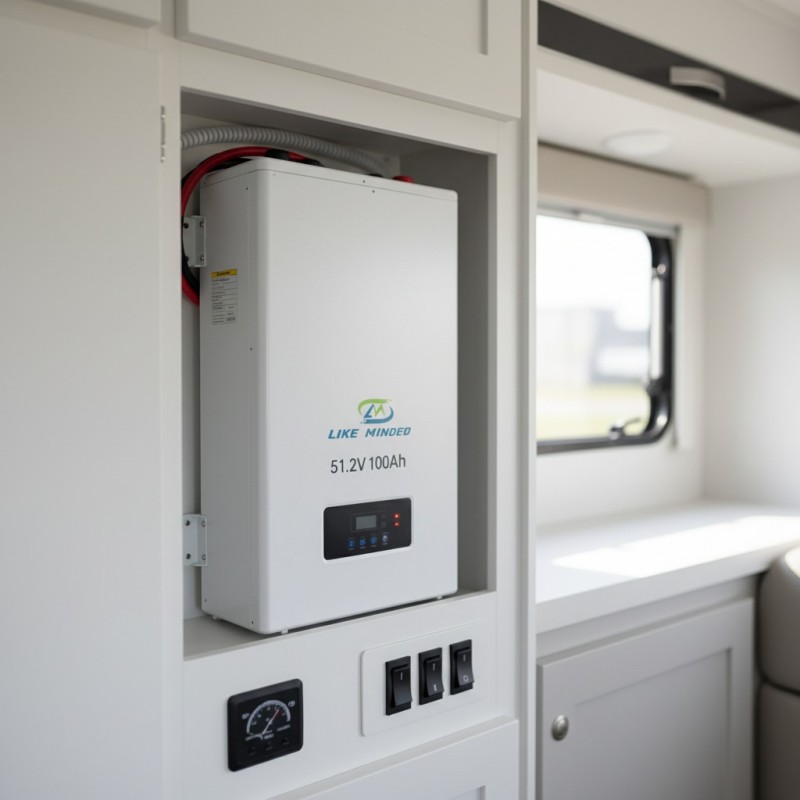

Designed for mobile living spaces, this RV Interior Wall Mount Power Battery Unit fits well inside caravans and campers. It can continuously supply power for RV daily appliances, supporting off-grid camping and outdoor travel. The durable build and reliable performance make it a practical choice for multiple energy storage needs.
Item Specification
| Item | Specification | Compact Model | Stacked Model | High-Capacity Model |
| Cell Chemistry | LFP(LiFePO4), 16S1P | ✅ | ✅ | ✅ |
| Nominal Capacity | 100Ah | 100Ah | 100Ah×2 | 100Ah×3 |
| Usable Energy | 5.12kWh | 5.12kWh | 5.12kWh×2 | 5.12kWh×3 |
| Nominal Voltage | 51.2V | ✅ | ✅ | ✅ |
| Nominal Output Current | 100A | ✅ | ✅ | ✅ |
| BMS Protection Current | 120A, 1s | ✅ | ✅ | ✅ |
| Charge Voltage | 57.6V | ✅ | ✅ | ✅ |
| Charge Current | 30A (Max 50A, Peak 100A) | ✅ | ✅ | ✅ |
| Discharge Cut-Off Voltage | 44V | ✅ | ✅ | ✅ |
| Max Discharge Current | 100A | ✅ | ✅ | ✅ |
| Communication | CAN/RS485/RS232 | ✅ | ✅ | ✅ |
| Display | SOC status indicator, LED indicator | ✅ | ✅ | ✅ |
| Dimension(LWH) | Customized | 1014×200×550Hmm | 700×200×1130Hmm | 554×430×1220Hmm |
| Weight | Customized | 76.8KG | 131KG | 218KG |
| Charge Temperature | 0℃ to 55℃ | ✅ | ✅ | ✅ |
| Operating Temperature | -20℃ to 75℃ | ✅ | ✅ | ✅ |
| Storage Temperature | -20℃ to 75℃ | ✅ | ✅ | ✅ |
| Cycle Life | ≥5000 Cycles | ✅ | ✅ | ✅ |
| Scalability | Max 15 batteries in parallel | ✅ | ✅ | ✅ |
Product Advantages
Space-saving Wall-mounted Design
Slim body with dedicated mounting parts, no occupation of floor space, suitable for homes, RVs and indoor solar rooms.
Long Service Life
Premium LiFePO4 cells support more than 5000 charge and discharge cycles, far longer than traditional batteries, reducing replacement costs.
Full Safety Protection
Integrated smart BMS protects the battery from overcharge, overdischarge, overcurrent and overheating, ensuring safe daily use.
Strong Compatibility

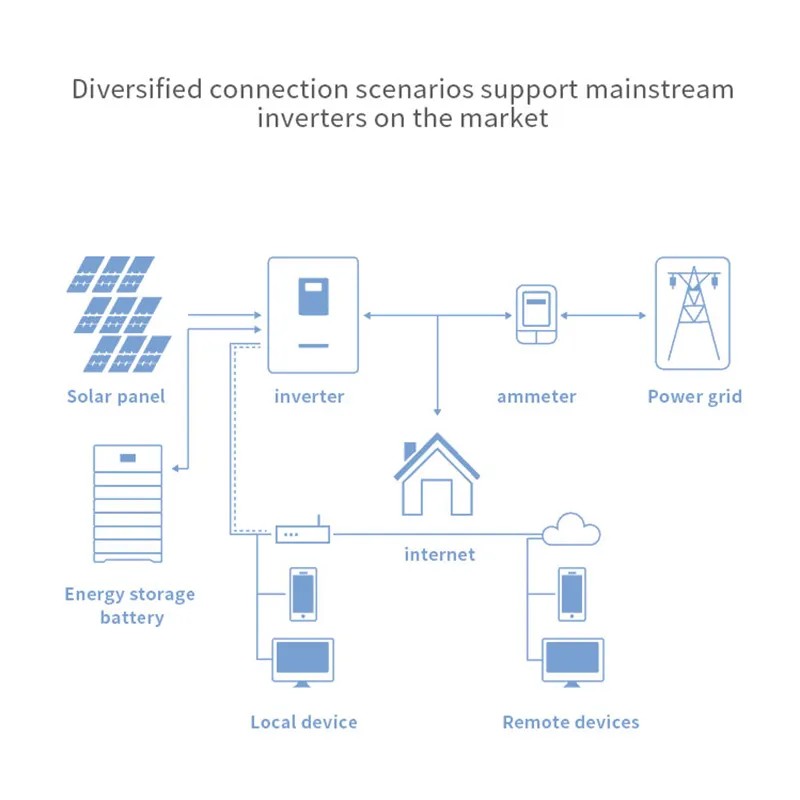

Matches most solar inverters, chargers and electrical appliances, easy to combine with existing solar energy systems and RV circuits.
Flexible Capacity Expansion
Supports up to 15 batteries in parallel, you can freely expand power capacity according to your actual power demand.
Wide Temperature Adaptation
Stable operation in complex temperature environments, applicable for indoor and RV mobile usage scenarios all year round.
Application Field
Household emergency backup power supply
Indoor solar energy storage systems
RV & camper interior daily power supply
Our Services
Full range of energy storage products and complete system solutions
Professional technical consultation and scheme design for multiple scenarios
Customization service to meet diverse application requirements
Detailed installation guidance and remote technical support
Strict quality inspection for all products before shipment
Standard export packaging and reliable global shipping
Responsive after-sales service and technical troubleshooting
FAQ
1. What main applications does this battery suit for?
It is widely used for household emergency backup power, solar energy storage systems and RV interior power supply.
2. Is this battery designed for wall mounting?
Yes. It comes with dedicated mounting parts, which saves floor space and allows easy wall installation.
3. Can it work with solar panel systems?
Absolutely. It is fully compatible with most solar inverters and solar setups for efficient energy storage.
4. How many batteries can be connected in parallel?
This model supports up to 15 units in parallel to expand your storage capacity freely.
5. What is the service life of this LiFePO4 battery?
It reaches more than 5000 cycles at 80% DOD, featuring long lifespan and stable performance.
6. Do you provide technical support and after-sales service?
We offer professional technical guidance, installation tips and long-term global after-sales support.
7. What is the warranty period?
We provide 3 years of official warranty for this product.
