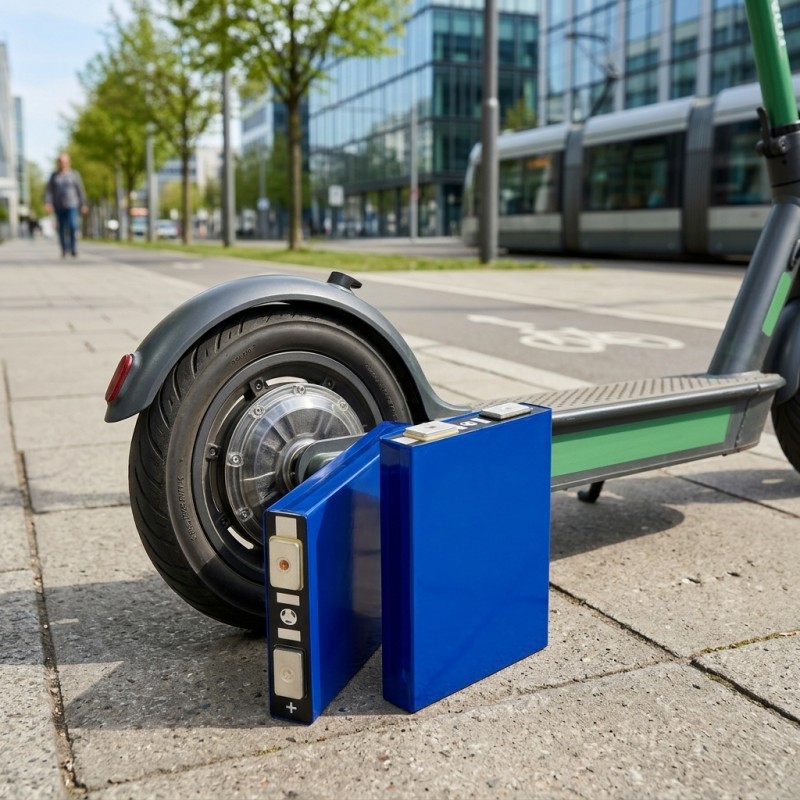

Likeminded 27Ah LiFePO4 prismatic cell is designed for assembling low speed electric vehicle battery packs including tricycles, golf carts, and neighborhood EVs.
Multiple cells can be connected in parallel and series to achieve required capacity and voltage, with 1.5C continuous discharge and over 3000 cycle life.
Articolo n. :
27Ah Deep Cycle Lifepo4 CellOrdine (MOQ) :
100PCSPagamento :
T/T,L/C,Credit Card,PayPalOrigine del prodotto :
ChinaColore :
BlueServizio :
OEM /ODMPorto di spedizione :
Shanghai/Guangzhou/Shenzhen/NingboTempi di consegna :
3-7 DaysPeso :
598g±5gThe Likeminded 27Ah deep cycle LiFePO4 cell is a building block for low speed electric vehicle battery packs. A single cell provides 27Ah capacity at 3.2V nominal. For practical EV applications, multiple cells are connected in parallel to increase capacity and in series to increase voltage.
Outdoor Equipment 27Ah Lithium Iron Cell
LiFePO4 Battery Full Production Process
Watch our factory video to learn more about our professional LiFePO4 battery production process. From raw cell production and precision welding to strict finished product inspection, we control every detail to ensure high quality and stable performance for all our battery products.
Performance Specifications
| Parameter | Value |
| Nominal voltage | 3.2V |
| Rated capacity | 27Ah - 29.7Ah at 25°C |
| Working voltage range | 2.0V - 3.65V |
| AC internal resistance | 0.5mΩ - 1.4mΩ |
| Mass power density | 1300W/kg or higher |
| Low temperature discharge | 80% at -10°C, 70% at -20°C |
| Standard cycle life | 3000 cycles at 25°C |
| Outer Size | 20.5mm×100mm×140mm |
| Single Weight | 598g±5g |
| Working Temperature | -30℃ ~ 55℃ |
Spot Welding on Prismatic LiFePO4 Cells
This video shows the spot welding process on prismatic LiFePO4 battery cells. Proper welding ensures secure and low resistance connections for electric tricycle and mobility scooter battery packs.
Why Choose This Cell for Pack Assembly
High rate discharge: 1.5C continuous, 5C pulse for 10 seconds
Cycle life: 3000 cycles at 25°C, reducing long-term pack replacement cost
Wide temperature discharge: from -20°C to 60°C
Low DC internal resistance: 3.0mΩ or less for consistent cell matching
Safety: passes nail penetration, crush, overcharge, and short circuit tests
Application Field
Electric tricycle battery pack assembly
sightseeing vehicle packs
Mobility scooter packs
Neighborhood electric vehicle packs
Our Customization & Wholesale Services
As a reliable supplier, we offer comprehensive service for OEM Available 27Ah High Cycle LFP Power Cell:
OEM & ODM Service: Custom grouping matching, customized private label printing, special parameter fine-tuning and customized packaging design based on clients’ equipment demands;
Order Flexibility: Small sample trial order and large bulk container order are both acceptable, flexible MOQ setting for newly developed customers;
Technical Support: Free battery pack matching suggestion, professional engineer online guide for assembly scheme optimization;
Global Aftermarket: Dedicated sales team tracks order progress from production to delivery, solve product technical problems timely.
Packaging & Shipping
Our Company
Anhui Likeminded New Energy Technology Co., Ltd. is a leading comprehensive new energy manufacturer and supplier based in Hefei, Anhui Province, China. We specialize in the R&D, manufacturing, and sales of lithium-ion cells, battery modules, energy storage batteries, solar panels, inverters, and UPS systems, with a complete industrial chain covering everything from core component production to finished product integration.
Our core advantage lies in high-quality new energy products with stable performance, which have been widely applied in electric scooters, electric golf carts, forklifts, residential energy storage, commercial backup power, and off-grid power systems. Supported by standardized production workshops, advanced automated assembly lines, and a full set of quality testing equipment, we maintain a stable monthly production capacity to meet both small-batch customized orders and large-scale bulk deliveries. Strict ISO quality management systems are implemented throughout every production process.
Our core team consists of industry professionals with over 10 years of experience in the new energy sector, supported by a dedicated international marketing and technical team. We provide one-stop customized solutions, with OEM/ODM services available to adapt products to different regional standards and application scenarios. Flexible low MOQ and pre-production sample testing are also offered to support your project validation.
All our products undergo rigorous multi-stage quality testing and inspection, ensuring stable performance and long-term reliability. We provide comprehensive after-sales support to address any technical or quality concerns, giving you peace of mind with every purchase.
Contact us carolinekang@like-minded.com.cn today with your forklift model and requirements for a customized quotation! Let our reliable lithium battery for electric forklift power your operations.
Call/WhatsApp: +86 17705510726
FAQ
Q1: What is the dimension and weight of our 3.2V 27Ah Aluminum Shell LFP Cell?
A: The cell measures 20.5mm100mm140mm with single weight 598g±5g, standard size convenient for modular battery pack assembly.
Q2: How many charge cycles can the Factory Direct 3.2V 27Ah Lifepo4 Storage Cell reach under standard test condition?
A: Tested at 25℃ with 1C charge and discharge rate, the cell achieves more than 3000 full cycles, remaining above 80% initial capacity after long-term cycling.
Q3: How is the low-temperature performance of Customizable High Cycle 27Ah Lithium Battery Cell?
A: It retains over 80% capacity at -10℃ and above 70% rated capacity at -20℃, perfectly suited for equipment working in cold outdoor surroundings.
Q4: What are the maximum continuous and pulse discharge rates of this 27Ah lifepo4 cell?
A: It supports 3C continuous steady discharge and 5C short pulse discharge within 10 seconds to satisfy instant high power startup demands.
Q5: Do you support sample order for testing the 3.2V27Ah lithium iron phosphate cell first?
A: Small sample orders are acceptable for client performance verification, and sample cost can be deducted from subsequent bulk factory orders.
Q6: Is OEM customization available for these aluminum shell LFP cells?
A: Yes, our OEM service covers custom brand labels, exclusive packaging design and professional battery grouping technical guidance as clients’ requirements.
Q7: What is the monthly self-discharge level of this 27Ah lifepo4 single cell?
A: Monthly self-discharge rate is controlled below 4%, enabling long-term warehouse storage without frequent supplementary charging.
Q8: What main application fields are these 3.2V27Ah lifepo4 cells applicable to?
A: Widely applied in small low-speed EVs, industrial backup power and solar landscape lighting equipment.
Q9: What’s your quality inspection standard for finished lithium cells?
A: We implement full inspection on appearance, size, resistance and voltage after production plus random temperature and abuse tests to guarantee consistent batch quality.
Q10: What warranty policy do you provide for bulk ordered lifepo4 cells?
A: We offer free replacement for non-human-induced defective cells within warranty period and 24-hour online technical consultation for assembly issues.
